Meter Seal "ConnectionLock DN25" (1")
Meter Seal "ConnectionLock DN25" (1")
Product no.:
S313

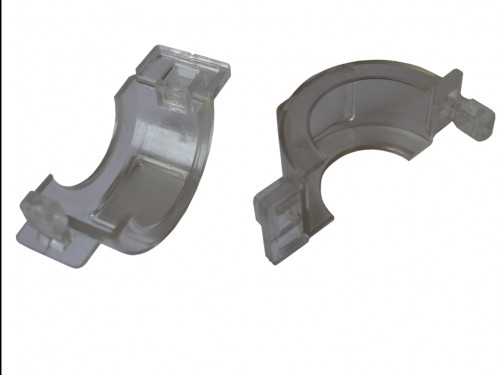

The connectionLock consists of two identical half-shells, made of polycarbonate (PC). The two-shells are simply plugged together on the connection nut. A special lock prevents accidental opening of the ConnectionLock. In addition the ConnectionLock can be secured for example with a sealing wire and lead seals.
The connectionLock is available in different sizes: DN20, DN20+, DN25 and DN40
Technical Data:
- Material: Polycarbonate (PC)
- Nominal diameter: DN25 (1")

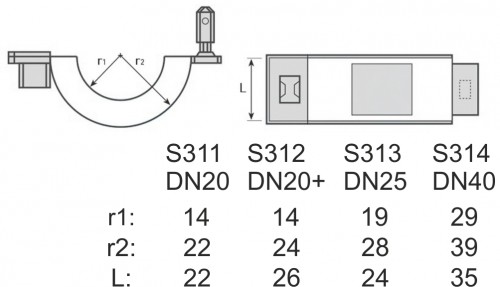

- Radius r1: 19 mm (see figure)
- Radius r2: 28 mm (see figure)
- Interior width L: 24 mm (see figure)
- Colour: transparent
- Delivery includes: 2 snap-together half-sheels
