Meter Seal "ConnectionLock DN40" (1 1/2")
Meter Seal "ConnectionLock DN40" (1 1/2")
Product no.:
S314

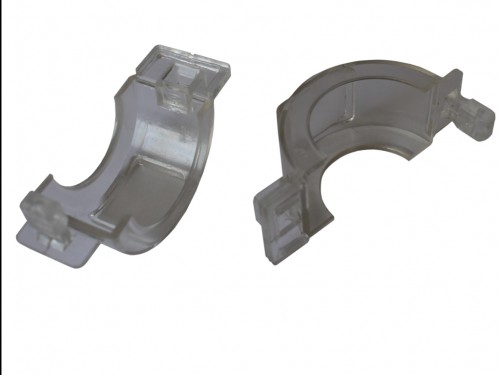

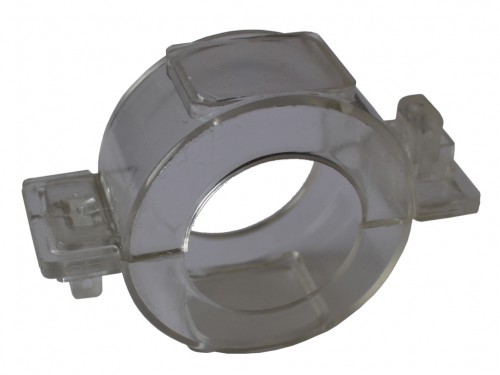

The connectionLock consists of two identical half-shells, made of polycarbonate (PC). The two-shells are simply plugged together on the connection nut. A special lock prevents accidental opening of the ConnectionLock. In addition the ConnectionLock can be secured for example with a sealing wire and lead seals.
The connectionLock is available in different sizes: DN20, DN20+, DN25 and DN40
Technical Data:
- Material: Polycarbonate (PC)
- Nominal diameter: DN40 (1 1/2")

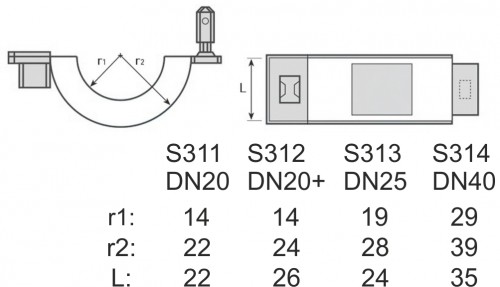

- Radius r1: 29 mm (see figure)
- Radius r2: 39 mm (see figure)
- Interior width L: 35 mm (see figure)
- Colour: transparent
- Delivery includes: 2 snap-together half-sheels
